....................................................,,,,..........--- Outboard Stand ---
..................

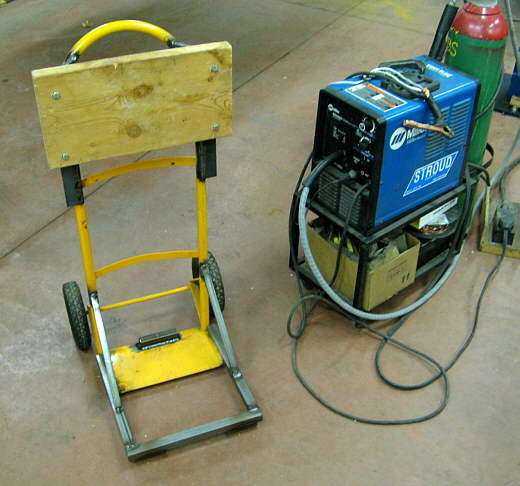

When we got our Mac 26S it was winter and I wanted to bring the outboard inside in case there was any water in it and I didn't have time to figure out how to drain it and it was freezing outside. The boat came from Arizona, so I didn't know if it had been drained or not. Ruth had a cheap 2 wheel cart she had bought at Home Depot and I decided to use that as the basis for a portable stand.
..................

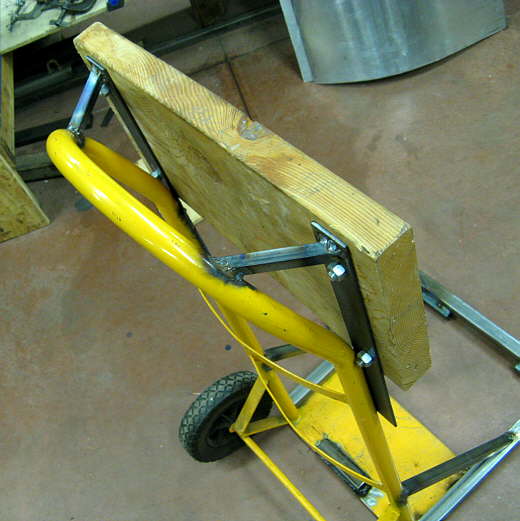

I drilled two two pieces of 1/8 inch strap and welded them on vertically to the top of the cart and then.......
..................

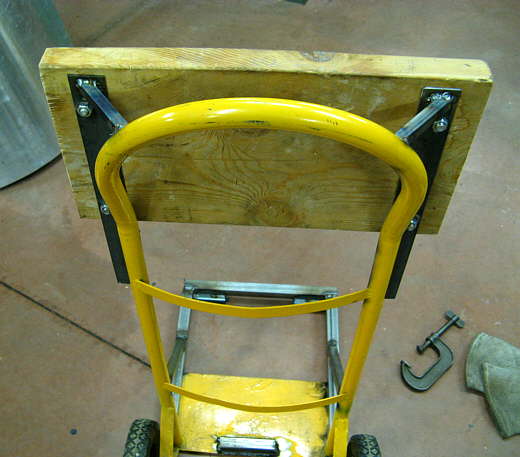

...... added some short pieces of 1/2 X 1/2 thin wall square tubing at an angle to brace the top of the strap. I clamped a piece of wood to the vertical straps and drilled holes through the wood and bolted it to the top of the stand.
...................

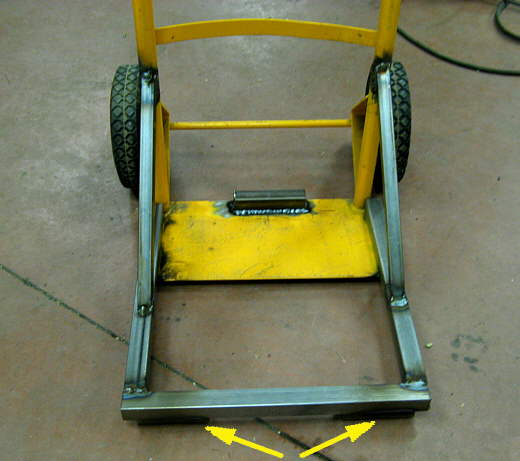

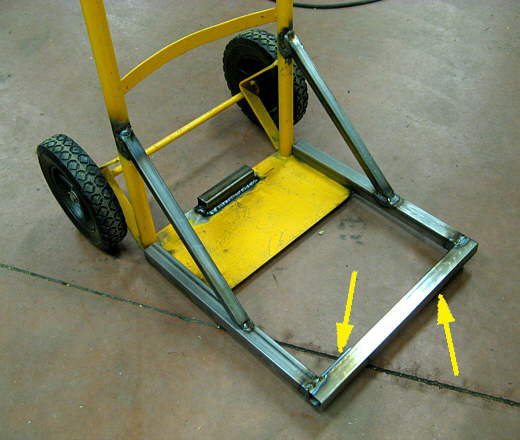

Next I welded some 1 X 1 thin wall square tubing to the bottom of the cart and some 3/4 X 3/4 braces to that. The arrows point to short pieces of 1 X 1 square tubing that was welded to the other square tubing. These pieces raise the front and tilted the cart back a little to help better balance it with an outboard on it..........
...................
.............and they stuck out a little towards the center of the base to support the.......
...................

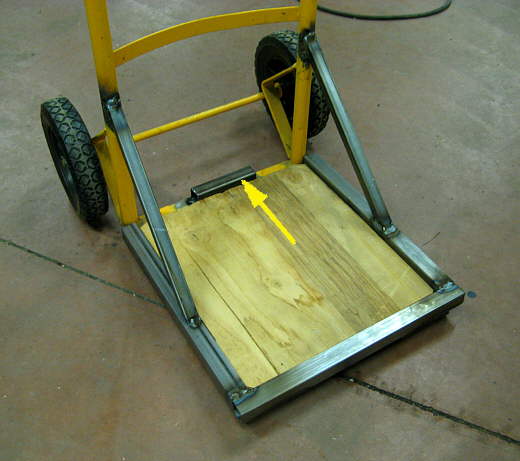

........the forward edge of a piece of plywood that I cut for a floor in the cart. The arrow points to a short piece of square tubing that keeps the plywood from sliding rearward.
..................

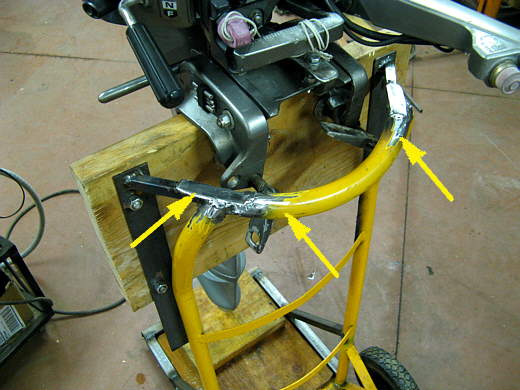

I could get the motor on and tilt it, but it was a pain with the top of the cart (the curved part) in a vertical position. I cut the top off and rotated it 90 deg. (middle and right arrow) and welded it back on and welded a piece of strap to it (far left arrow) and on to the previously welded brace. Now things work much better.
..................
Here the motor is tilted up as far as it goes. The stand is very stable in this position and in the down position and everywhere in between.
................................

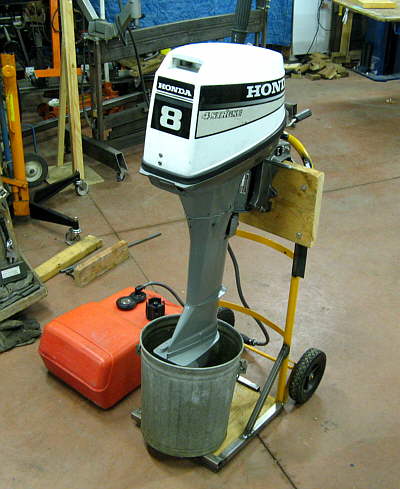

Here is the finished cart (picture taken before I rotated the top of the cart 90 deg. rearwards) with the outboard mounted on it ready for a test and tune run. I'll get some yellow rattle can paint and paint the new pieces that were welded on. This was a fast project.
..................

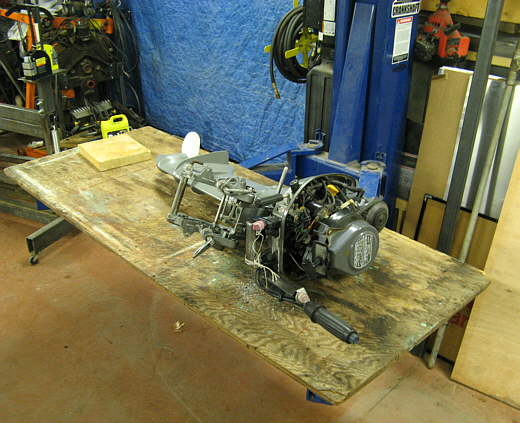

On another note I have a 2 post lift in my shop and it is the handiest thing to work on stuff like lawnmowers and in this case the Honda motor. Lower the lift and put a piece of plywood on the arms and drag whatever you want to work on over to it and raise it to a convenient work height. I was working on the Honda and making parts for it. The levers to tilt the motor and then let it back down were missing and I had to machine some new ones.
