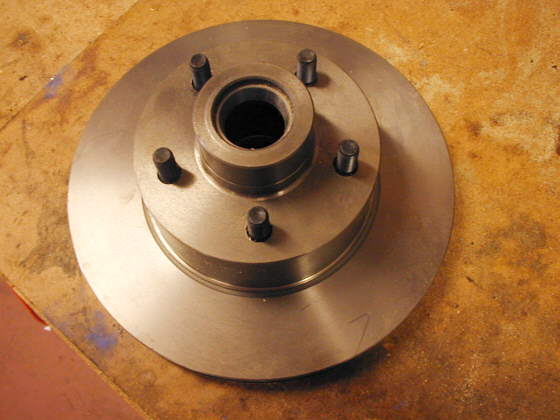

I was originally going to use a model A axle with '37-47 Ford spindles on the lakester I first had planned. A couple years ago I got Mopar rotors and a bearing kit from Speedway to adapt the rotors to the early Ford spindles. Now I'm going to make a straight axle, but keep the Ford spindles and use them with the Mopar rotor and bearing kit I bought.

............

I'm not running any brakes in the front, so I really just need hubs up there. To trim weight and since I don't need the disc brake rotors I decided to cut the rotors off of the center section, which would give me a hub that would still work with the bearings and spindle I have.

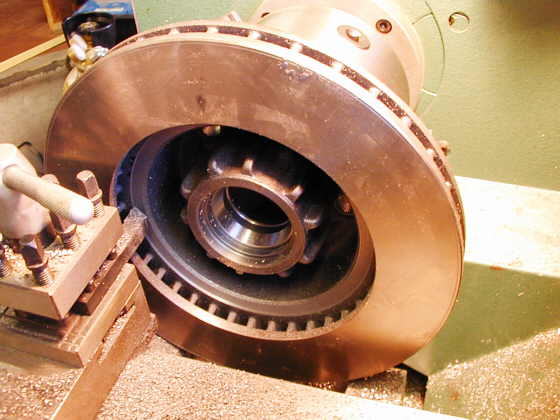

I started by putting the rotors in the 3 jaw chuck and turned them from the back side to the point that the rotor fell off. I was turning at only 60 rpm, so when the rotor came free it was no big thing.


...............

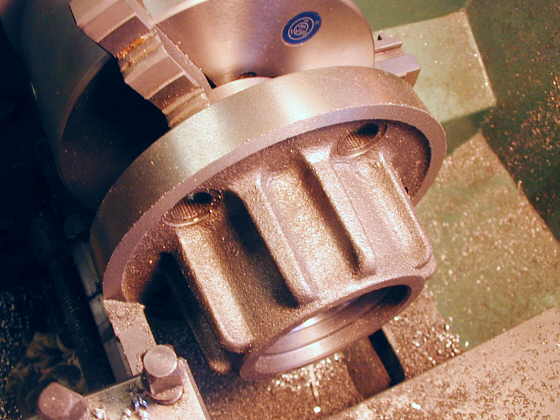

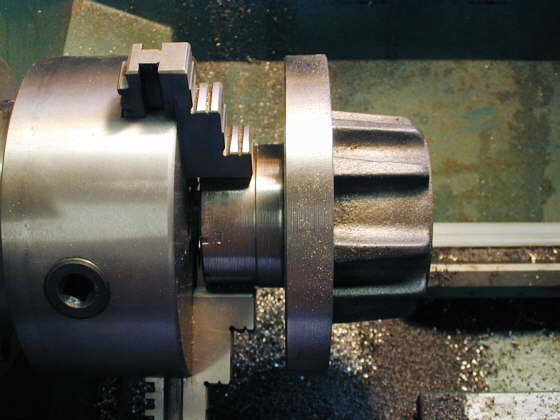

With the rotor off I still had material on the hub that wasn't needed. The hat like area that went back to the rotor. I came in from the side a ways back from the front and cut until it fell off.

...............

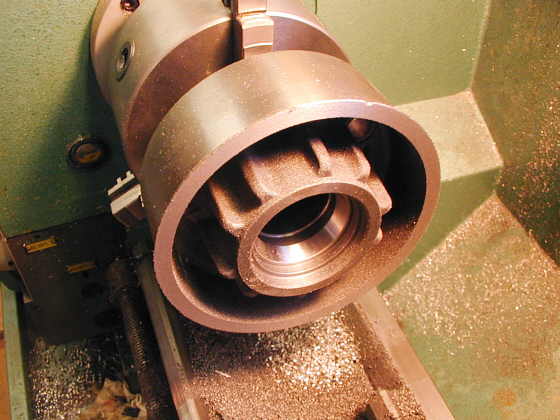

This shows the "hat" like area cut off. The front of the hub is in the chuck to the left and the back is to the right.

..............

Next I cleaned up that face flat and to the thickness I wanted.

.................

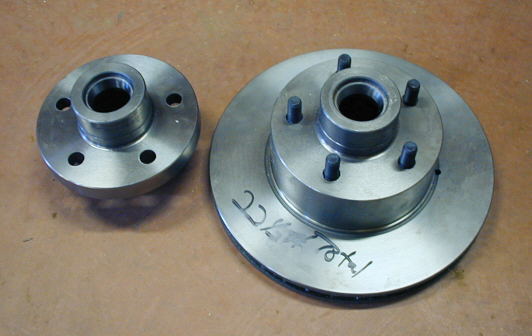

The finished hub on the left and what I started with on the right. The complete hub and rotor on the right weighed 22 1/2 lbs. The finished hub on the left weighs 9 1/2 lbs., so I trimmed 13 pounds off of each hub assembly.

.................

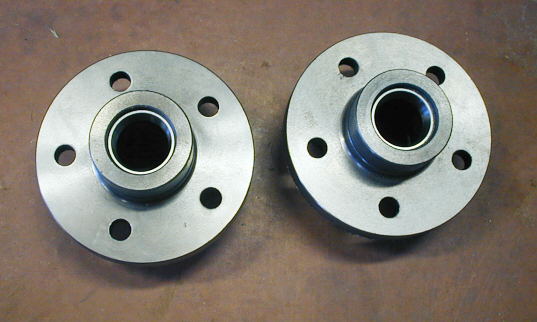

Both finished hubs looking at them from the wheel side. I haven't put studs back in them yet.

..................

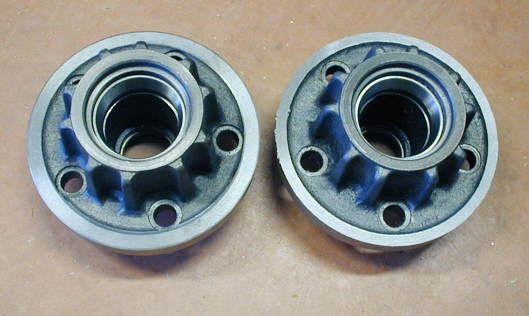

The finished hubs from the back side. I spent about 3-4 hours on this. I've worried about how I was going to do it for months, but it went really smoothly. I'm really getting to like the lathe. It and the mill were a very good investment.
