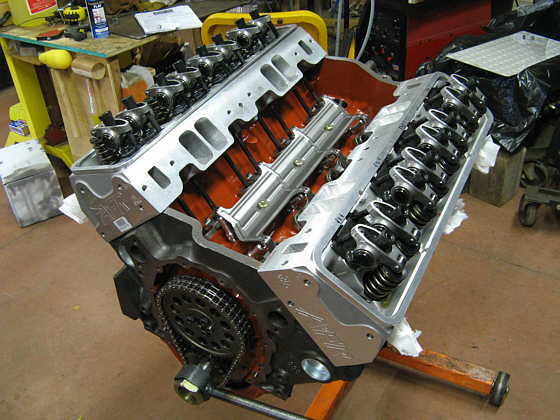

Carburated Motor Parts List:


Machine Work -- Tony Hill (Owner of Victory Engine & Machine, LLC (970)-565-4955)

Line Bored block with new new billet 4-bolt main caps.

Decked block to close to "zero deck".

Bored/Prepped block .030 over and honed with torque plates.

Clearanced Block for rods.

Balanced rotating assembly using 1 flex plate for the current 700R4 transmission and another flex plate for the future 4L80E transmission. Tony spent a day balancing the motor and it is smooth as silk.

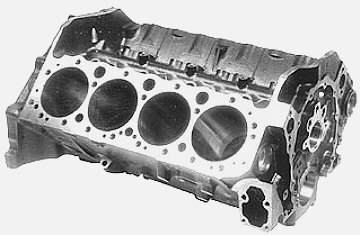

Block --.........................

1998 Vortec 1 piece rear main seal 4 bolt block. This engine block is used in 1986-99 Gen I heavy-duty applications. It has 4.00 diameter cylinder bores and four-bolt main bearing caps. It is not real easy finding these 4 bolt blocks, but I found a bare block in Framington, New Mexico at a Salvage yard for $200. This was a "bare" block and as you will see that ended up costing me a little more.

Lifter Valley Vents --........

..............................................................................Moroso #25025

Main Bearing Caps --........

..............................................After market Billet main caps for a factory 4-bolt main.

.........................................................Line bored by Victory Engine & Machine.

Heads --........

.............AFR 195 #1034 65cc Eliminators with the following upgrades:

.................#8047 spring upgrade (1.270 LS1 Hyd. Roller Spring)

.................#7512 Inconel Exh Valves upgrade for turbo use

................7/16 inch stud upgrade

...............(ordered from Mike Lewis (707) 984-6103)


Cam --
...............

.................................Comp Cam #08-501-8 -- XR264HR

.................Hydralic Roller with 212/218 intake/exhaust at .050 and

.........................488/.495 intake/exhaust lift with 1.5 rockers.

Timing Set -- ........

...............................Cloyes #9-3145A Hex-A-Just True Roller Set..

Damper -- ...................

.............................................ATI #917780 7 inch Super Dampner.

Timing Pointer --.....

...................................................ATI #918954 for 7 inch dampner.

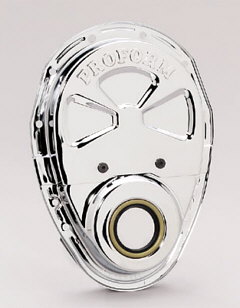

Timing Cover --
........

.............................................Proform #66666 2-Piece Chrome Plated


Crank --
...................

....................Eagle #435335005700 Sb Chevy Eagle 4340 Steel Crankshaft -

............................................350 Mains with 3.500" Stroke,

..........................5.7" Rod Minimum with 1 Piece Seal and Int Balances.

....................................With Clevite MS 909 HN Main Bearings.


Rods --
................

...............................................6 Inch 4340 I-Beam rods.

.......................................With Clevite 663 HN Rod Bearings.


Pistons --
...................

..............................................( Picture is of one of my pistons)

......................................................JE custom forged turbo pistons with:

..........................................................17cc dish for 9.1 compression.

.............................................1/16, 1/16 and 3/16 ring pack and

...........................................Lower top ring for blown application.

................................................(I ordered 2 extra pistons).

Rings -- ....................

..............Total Seal MS3690-35 gapless top rings designed for blower applications.

.............................................................File to fit.

.......................About the most expensive rings you can buy as I found out.

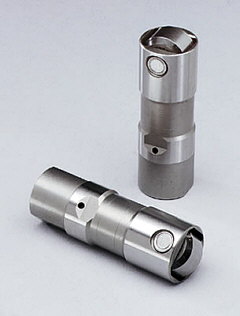

Lifters -- ....................

..............................................Comp Cams 850-16 roller lifters.

Pushrods -- 5/16 Hardened 7.300 custom lenght I think. I used a checker pushrod and forgot to write down the measurement.


Rocker Arms --
....

........................Comp 1304 Pro Magnum 1.52 (7/16 stud) full roller rocker arms

.................................................(I ordered 1 extra to carry with me).


Spider Lifter Retainer Kit --
....


........................................................Hydraulic Roller Lifter Installation Hardware -- Comp Cam 08-1001

..........................................................................................For 1991-2002 5.7L Vortec/LT1.


Oil Pan -
...............

........................................Moroso #20205 7 quart kicked out pan.

Oil Pump -- ...............

........................................Melling 10550 high volume with a .625 inlet.

........................... I used the high pressure spring and a hardened drive shaft.


Oil Pickup --
.................

........................................Moroso #24861 U-Weld-It Extended Oil Pump Pickup.


Gaskets --
.............

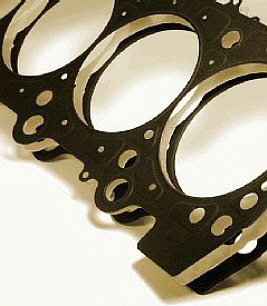

Cometic #C5877-040 Multi-Layered Steel (MLS) 4.065 X .040 head gaskets (see above picture).

Fel-Pro Engine Kit Set #260-1269 with one-piece pan gasket.

Fel-Pro Performance Intake Manifold Gasket Set #1205 -- 2.09 in. x 1.28 in. Port, .060 in. thick.

Fel-Pro Performance Exhaust Header Gasket #1404.

Fel-Pro Performance #1604 Cork/Rubber with steel core valve cover gaskets.

Valve Covers -- ...........

............................................Summit ( SUM-G3302) Die-Cast Aluminum Valve Covers with:

............................Proform Air Breather Cap`` ( PRO-66008 ) and SUM-G3410 grommet.

................................Moroso ( MOR-68781 ) One-Piece Push-In Valve Cover Breather.


Bolts --
....................

....................................Head Bolts -- ARP-134-3701

....................................Crank Main bolts -- ARP-234-5201

....................................ARP Pro Series Flexplate Bolt Kit -- ARP-200-2906

....................................ARP Torque Converter Bolts for 700R4/4L80E (sold as a set of 6)

....................................Harmonic Balancer Bolt -- SUM-G1677

....................................Timing Cover Bolt kit -- ARP-400-1501

....................................Intake Bolts -- Sum-G1491


Water Pump --
........

..........................................Stewart #23113 Stage 2 Aluminum Water Pump.


Thermostat -- Stewart/Robert Shaw #301 thermostat.


Distibutor --
........

........................Stock re-curved HEI that I had in the prior engine for now.


Plugs --
................ ...........Champion #344 RC9YC.


Plug Wires --
......

..........................Taylor 8mm Spiro Pro Series with 90 deg. boot -- TAY-73051

Wire Loom -- ......

...................................................Moroso #MOR-72174 (black)

Wire Seperators -- ......

..................................................Morso Wire Seperators -- MOR-72163 (black)



Alternator --
......

....................................Summit #SUM-811001 100 amp 1 wire -- Black.

Intake Manifold -- ......

.......................................GM Aluminum 2 plane that Hooley gave me for now.


Carb --
......

............................Q-jet with electric choke that I re-built.


Headers --
..................

................................................Hedman #68600 shorty/un-equal lenght.

........................................I've had these on the truck for 145,000 miles now.

..........With Stage 8 #8911 (these have never come loose and I've never had a header gasket leak).


Starter -- Stock starter off of previous motor.


Injected Parts List (the first 3 parts below were installed when the carb motor was built for future use with the fuel injection):


Fuel Pump --
...........

........................Bosch #044 High Output -- 72psi Fuel Pump -- 200gph

..................................................From jayracing.com.

Regulator --......................

...........................................Aeromotive 13301 Regulator with -6 Inlets/Outlets.

................The low pressure spring will adjust fuel pressure from 3-20 psi to use with the carb.

The included high pressure spring will adjust fuel pressure from 20-60 psi to use with the fuel Injection.


Post filter after Pump --
........

...............................................................Golan -8AN Fuel Filter from jayracing.com.

.....................................................Flows 900 GPH all while filtering down to 10 microns.


Pre-Filter before Pump --
.......

.................................,,,,,,,,,,,............................,.......Earl's Performance 230208ERL

...................................,,,,,,,,,,,,.......85 Microns with -8 AN Male Inlet/Outlet from jayracing.com.


Fuel Pressure Gauge --
.......

...............................Summit SUM-G3122 0-15 psi Fuel Pressure Gauge Mounted on Regulator.


Fuel Pump Block Off --
....

............................................................................Summit -- SUM 401030


Gas Tank Sealer -- Eastwood Company Gas Tank Sealer item #10165 Z.

..
Turbo Parts List:

These will be added when the engine is turboed.
